Remarks：This equipment is applied extensively in chemical, paper mill, smelter, carbon etc. which provides D

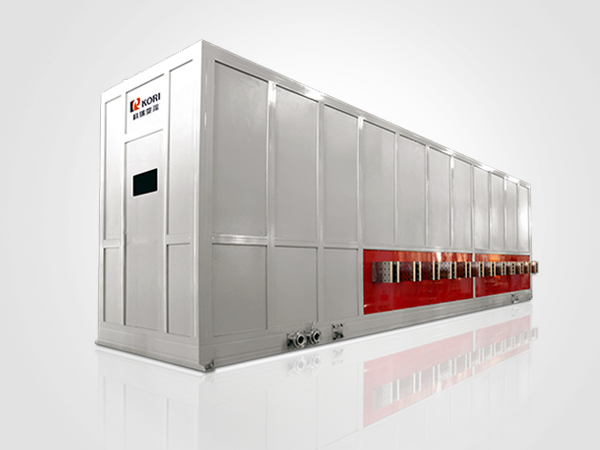

1.Integrated design to integrate the rectifier section, control section, power distribution section, DC switch and DM water cooler etc. save installation space and is convenient for installation and commissioning at the site.
2.Complete sealed design, the protection class IP 55, and prevent conductive dust and corrosive gas to improve the safety and extend the lifespan of the rectifier equipments.
3.Complete aluminum cubicle, prevent the local overheating effectively caused by eddy current by non conductivity of aluminum, extend the rectifier lifespan by excellent corrosion resistance.
4.Avoid the external temp. affection by the air cooling and thermal insulation design; maintain constant inner cubicle temp, and outdoor installation type also save the workshop construction cost.
5.Complete protection measures for monitoring the air humidity, air temperature, water temperature, water pressure, water leakage, air flow, element temperature etc. No need for inspector in the site.
Technical Data:
Max. output DC voltage： 1650 VDC
Max. output DC current 150 KA
Installation method Indoor/outdoor
Main circuit type 3 phase bridge, double reverse star
Rectifier element Thyristor, diode
Unbalance coefficient of the same arm element current <0.15
Pulse nos. of single unit 6 or 12 pulse(More rectifier panels combine with rectifier transformer phase shift to form equivalent of 24,36,48,60 and 72 pulse)
Cooling method Water-water cooling, water-air cooling
Protection configuration Water pressure, water temperature, arm temperature
Protection class IP40,IP42,IP55Main CharacteristicsMain Characteristics
